Minco S665,S667,S17624,S23958工業貼片溫度傳感器

發布時間：2025-12-10 09:03:12 瀏覽：243

　　Minco Thermal Tab （S665,S667,S17624,S239558,S100820,S239559,S100725,S100724,S100723,S239560,S239561,S100721系列）是一款高精度、超輕薄、可表面貼裝的工業級貼片溫度傳感器，適合各種狹小空間、高溫或液體環境下的溫度監測。

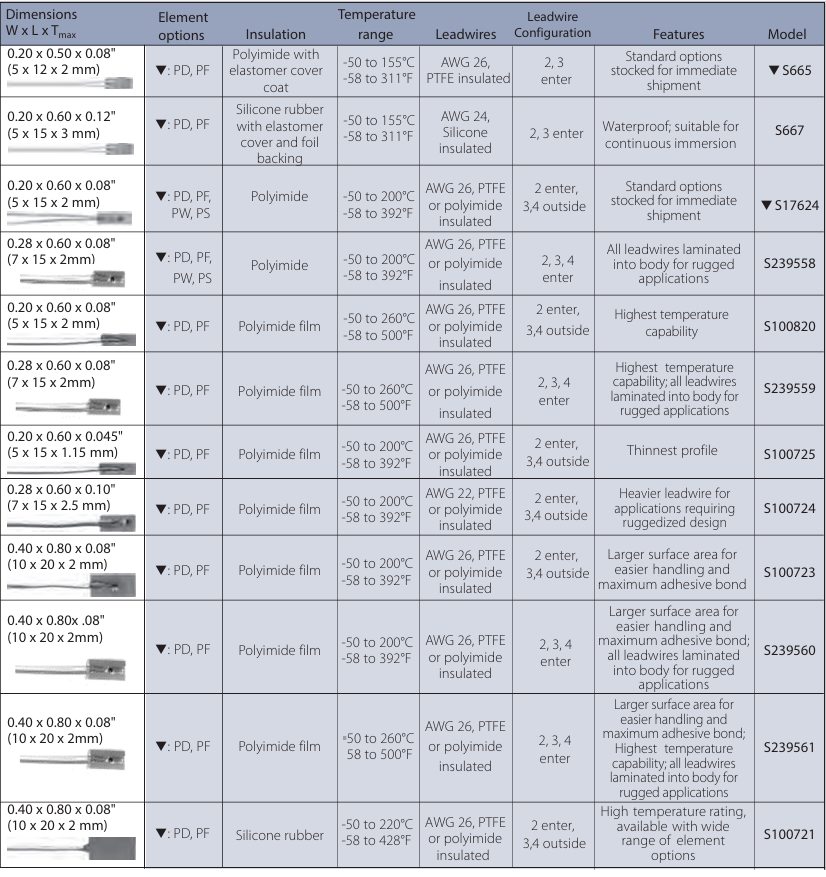

　　可選型號與規格

minco工業貼片溫度傳感器

詳細型號：

Product	Element Type	Resistance	TCR	Length (mm)	Width (mm)	Thickness (mm)	# Leads	Lead Length (mm)
S100721PDYT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	914
S100721PDZT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	914
S100721PDZT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	914
S100721PFYT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	3,048
S100721PFYT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	914
S100723PDZT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	914
S100724PDYT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	7.11	2.54	2	914
S100724PDYT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	7.11	2.54	2	914
S100724PDZT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	7.11	2.54	3	3,048
S100724PFYT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	7.11	2.54	2	914
S100724PFYT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	7.11	2.54	2	914
S100725PDYT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	1.14	2	914
S100725PDZT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	1.14	3	914
S100725PDZT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	1.14	3	914
S100725PFYT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	1.14	2	3,048
S100725PFYT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	1.14	2	3,048
S100725PFZT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	1.14	3	3,048
S100820PDYT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S100820PDYT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S100820PDZT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S100820PDZT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S100820PDZT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S100820PDZT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S100820PFYT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S17624PDXT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	4	3,048
S17624PDXT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	4	3,048
S17624PDYT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S17624PDYT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S17624PDYT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S17624PDYT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S17624PDZT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S17624PDZT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S17624PDZT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S17624PDZT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S17624PFXT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	4	3,048
S17624PSXT120A	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	4	3,048
S17624PSYT120A	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S17624PSZT36A	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S17624PWYT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	2	914
S17624PWZT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	3	914
S665PDY120AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	3,048
S665PDY36AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	914
S665PDY36BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	914
S665PDZ120BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	3,048
S665PDZ12BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	305
S665PDZ36AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	914
S665PDZ36BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	914
S665PFY120AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	3,048
S665PFY12AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	305
S665PFY12BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	305
S665PFY36AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	914
S665PFY36BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	914
S665PFZ120AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	3,048
S665PFZ120BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	3,048
S665PFZ36AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	914
S665PFZ36BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	914
S667PDY120BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	3,048
S667PDY36AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	914
S667PDZ120AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	3,048
S667PDZ120BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	3,048
S667PDZ12AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	305
S667PDZ12BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	305
S667PDZ36AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	914
S667PFZ120BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	3,048
S667PFZ36AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	914
S667PFZ36BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	914
S17624PDZT40B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	1,016
S100721PDYT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	3,048
S100721PDYT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	3,048
S100721PDYT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	914
S100721PDZT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	3,048
S100721PDZT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	3,048
S100721PFYT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	3,048
S100721PFYT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	914
S100721PFZT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	3,048
S100721PFZT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	3,048
S100721PFZT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	914
S100721PFZT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	914
S100723PDYT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	3,048
S100723PDYT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	3,048
S100723PDYT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	914
S100723PDYT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	914
S100723PDZT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	3,048
S100723PDZT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	3,048
S100723PDZT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	914
S100723PFYT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	3,048
S100723PFYT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	3,048
S100723PFYT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	914
S100723PFYT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	2	914
S100723PFZT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	3,048
S100723PFZT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	3,048
S100723PFZT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	914
S100723PFZT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	20.32	10.16	2.03	3	914
S100724PDYT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	7.11	2.54	2	3,048
S100724PDYT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	7.11	2.54	2	3,048
S100724PDZT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	7.11	2.54	3	3,048
S100724PDZT36A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	7.11	2.54	3	914
S100724PDZT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	7.11	2.54	3	914
S100724PFYT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	7.11	2.54	2	3,048
S100724PFYT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	7.11	2.54	2	3,048
S100724PFZT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	7.11	2.54	3	3,048
S100724PFZT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	7.11	2.54	3	3,048
S100724PFZT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	7.11	2.54	3	914
S100724PFZT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	7.11	2.54	3	914
S100725PDYT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	1.14	2	3,048
S100725PDYT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	1.14	2	3,048
S100725PDYT36B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	1.14	2	914
S100725PDZT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	1.14	3	3,048
S100725PDZT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	1.14	3	3,048
S100725PFYT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	1.14	2	914
S100725PFYT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	1.14	2	914
S100725PFZT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	1.14	3	3,048
S100725PFZT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	1.14	3	914
S100725PFZT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	1.14	3	914
S100820PDYT120A	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S100820PDYT120B	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S100820PFYT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S100820PFYT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S100820PFYT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S100820PFZT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S100820PFZT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S100820PFZT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S100820PFZT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S17624PFXT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	4	3,048
S17624PFYT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S17624PFYT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S17624PFYT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S17624PFYT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S17624PFZT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S17624PFZT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S17624PFZT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S17624PFZT36B	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S17624PSXT120B	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	4	3,048
S17624PSYT120B	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S17624PSYT36A	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S17624PSYT36B	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	2	914
S17624PSZT120A	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S17624PSZT120B	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S17624PSZT36B	Platinum	10,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	2.03	3	914
S17624PWXT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	4	3,048
S17624PWXT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	4	3,048
S17624PWYT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S17624PWYT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	2	3,048
S17624PWYT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	2	914
S17624PWZT120A	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S17624PWZT120B	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	3	3,048
S17624PWZT36A	Platinum	1,000 Ω ±0.12% at 0°C	0.00375 Ω/Ω/°C	15.24	5.08	2.03	3	914
S665PDY120BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	3,048
S665PDY12AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	305
S665PDY12BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	305
S665PDZ120AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	3,048
S665PDZ12AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	305
S665PFY120BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	2	3,048
S665PFZ12AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	305
S665PFZ12BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	12.7	5.08	2.03	3	305
S667PDY120AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	3,048
S667PDY12AC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	305
S667PDY12BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	305
S667PDY36BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	914
S667PDZ36BC	Platinum	100 Ω ±0.12% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	914
S667PFY120AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	3,048
S667PFY120BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	3,048
S667PFY12AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	305
S667PFY12BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	305
S667PFY36AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	914
S667PFY36BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	2	914
S667PFZ120AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	3,048
S667PFZ12AC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	305
S667PFZ12BC	Platinum	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	15.24	5.08	3.05	3	305

上一篇: Vincotech太陽能逆變器功率模塊10-FY07BVA075S5-LF45E18

下一篇: 210-0603,210-0508 MTI-MILLIREN 210系列OCXO 14 Pin DIP封裝
