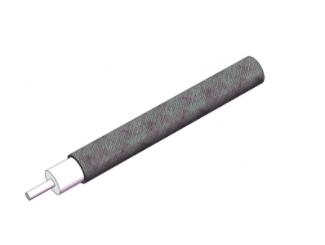

EZ Form同軸電纜EZ-Flex Formable? - Hand Formable
發布時間：2021-11-03 16:50:10 瀏覽：2509
應用EZ Form的EZ-FlexFormable?電線電纜，錯綜復雜的圖紙和高昂的彎曲專用工具已成為過去。EZ FlexFormable?電線電纜的銅錫復合外導體提供與實心護套半剛性電線電纜相同的100%屏蔽，但能夠輕松地根據您的規格尺寸手動成型。EZ-Flex Formable?電線電纜可與為半剛性電線電纜制造的焊接連接器一起應用，提供相似的電氣性能，而不需要設計和制造復雜性。
深圳市立維創展科技有限公司，授權代理EZ Form產品，歡迎咨詢。
詳情了解EZ Form Cable產品請點擊：/brand/78.html
或聯系我們的銷售工程師：0755- 83642657 QQ： 2295048674
鋁夾套
電纜部件號 | 外導體直徑 | 辯證材料 | 導體材料 | 阻抗（歐姆） | 速度 | 最大工作頻率 |
EZ-PT86-AL-SP | 0.086 (2.18) | TF4? | SPCW | 50.0 ±2.0 | 79.0% | 79 |
EZ-86-75-AL | 0.0865 (2.2) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 65 |
EZ-86-75AL | 0.0865 (2.2) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 65 |
EZ-86-75-AL-TP | 0.0865* (2.20*) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 65 |
EZ-PT86-AL-TP | 0.0865* (2.20*) | TF4? | SPCW | 50.0 ±1.5 | 79.0% | 60 |
EZ-86-AL-TP-HR | 0.0865* (2.20*) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 69.5% | 60 |
EZ-90-25-AL | 0.09(2.29) | 聚四氟乙烯 | SPC | 25.0 ±2.0 | 69.5% | 46 |
EZ-141-100-AL | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 100.0 ±2.5 | 69.5% | 43 |
EZ-141-25-AL | 0.141 (3.58) | 聚四氟乙烯 | SPC | 25.0 ±1.0 | 69.5% | 29 |
EZ-141-25-AL-TP | 0.141 (3.58) | 聚四氟乙烯 | SPC | 25.0 ±1.0 | 69.5% | 29 |
EZ-141-70-AL | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 70.0 ±2.0 | 69.5% | 41 |
EZ-141-70-AL-TP | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 70.0 ±2.0 | 69.5% | 41 |
EZ-141-75-AL | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 38 |
EZ-141-75-AL-TP | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 38 |
EZ-141-100-AL-TP | 0.141* (3.58*) | 聚四氟乙烯 | SPCW | 100.0 ±2.5 | 69.5% | 43 |
EZ-PT141-AL-SP | 0.141* (3.58*) | TF4? | SPC | 50.0 ±2.0 | 79.0% | 38 |
EZ-FLEX 鍍錫編織物
電纜部件號 | 外導體直徑 | 辯證材料 | 導體材料 | 阻抗（歐姆） | 速度 | 最大工作頻率 |
EZ-FLEX.47 | 0.047 (1.19) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 116 |
EZ-FLEX.47-CU | 0.047 (1.19) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 116 |
EZ-FLEX.47-CU-DS | 0.047 (1.19) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 116 |
EZ-FLEX.47-J | 0.047 (1.19) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 116 |
EZ-FLEX.86 | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-75 | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 70% | 67 |
EZ-FLEX.86-CLEAR | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-CU | 0.086 (2.18) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-CU-DS | 0.086 (2.18) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-CU-J | 0.086 (2.18) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-DS | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-DS-J | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-J | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.141-75 | 0.138 (3.5) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69% | 38 |
EZ-FLEX.141 | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-100 | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 100.0 ±3.0 | 69% | 41 |
EZ-FLEX.141-100J | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 100.0 ±3.0 | 69% | 41 |
EZ-FLEX.141-CLEAR | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-CU | 0.141 (3.58) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-CU-J | 0.141 (3.58) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-DS | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-J | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-J-AS | 0.141 (3.58) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 78% | 37 |
.EZ-FLEX.250 | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 69.5% | 19 |
EZ-FLEX.250-CLEAR | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 69.5% | 19 |
EZ-FLEX.250J | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 69.5% | 19 |
EZ-FLEX.250-J-AS | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 79.0% | 20 |
EZ-FLEX.250-AS | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 79.0% | 20 |
